The TEIN STREET BASIC Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
PLEASE NOTE
- Not available in Japan.
- This use the vehicle's original upper mounts which are not included with this kit
- Pictures may differ in the actual product
APPLICATIONS
- Toyota Corolla [Hatchback] (2019, 2020, 2021)
FEATURES
- Steel Construction
- Twin-Tube internal construction - longer stroke with a smaller repulsive force, resulting in high ride comfort
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- Fixed Dampening
- High-Performance Damper Oil
- Cold-formed with SAE9254 steel (minimum tensile strength 200 kgf/mm2) non-sag springs
- Anodized brackets with Teflon coated shock body for heavy-duty rust prevention
- bright TEIN-green powder paint
SPECIFICATIONS
- Spring Rate:
Front: 280 lbs/in
Rear: 263 lbs/in - Ride Height vs Stock (in):
Front: -1.4
Rear: -1.4 - Ride Height Adjustable Range:
Front: -1.0 to -3.0
Rear: -1.0 to -3.0

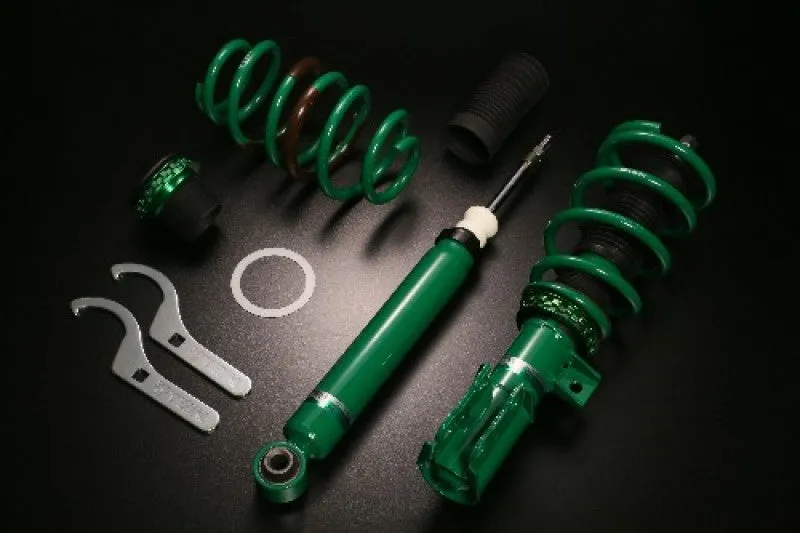

KIT INCLUDES
- 4 Shock Absorbers
- 4 Springs
- Some applications include TEIN Silencer Rubbers
- Warranty Information and Bump Stop Reference Guide
WARRANTY
- 1-year Manufacturers Defect and Sag Warranty:
- Covers over 5mm sag, breakage, deformity, and noise.
- Does not cover powder coat finish and rusting
